Welcome to Keder Rails.


Watermark 1.jpg







A selection of aluminium and PVC keder rails for keder from             5mm - 15mm.

Double shotgun and single type aluminium rails.

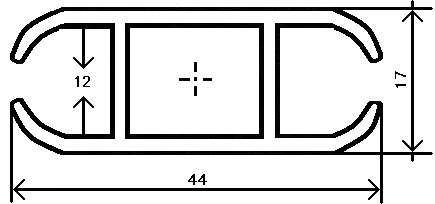

No1 Alum Line Drawing.jpg

  Double Barrel Aluminium Rail

  Part No: 32046030 (No1Alum)

  Length: 6m

  Width (B): 44mm

                                      Height (H): 17mm

                                      Int Dia (D): 12mm

Suitable for 8.5mm - 10mm Keder, outside diameter

The Aluminium can be bent through a 30cm radius

Joining element, 15mm x 12mm rectangular bar - Part No: 32023001



Double Barrel Anodised Rail

Part No: 3204603A

Length: 6m

Width (B): 44mm

Height (H): 17mm

Int Dia (D): 12mm

Anodised to AA20

Suitable for 8.5mm - 10mm Keder, outside diameter

================================================================================================

Double Barrel PVC Rail, WhiteNo 1 PVC Shotgun Rail.jpg

                      Part No: 10054442

                      Length: 5m

                      Width (B): 46mm

                                     Height (H): 16mm

                      Int Dia (D): 10mm


Suitable for 7.5mm - 9.5mm Keder, outside diameter

The PVC can be bent through 90deg, by using a hot air gun

Joining element: Part No: 4718105111



Please click here for accessories

========================================================================================================

10054430 FM.JPG

  FM Double Barrel Aluminium Rail

  Part No: 100544No1 alum.jpg30

  Length: 6m

  Width (B): 44mm

                                       Height (H): 17mm

                                       Int Dia (D): 12mm

Suitable for 8.5mm - 9.5mm Keder, outside diameter

The Aluminium can be bent through a 30cm radius


Joining element, 15mm x 12mm rectangular bar - Part No: 32023001

========================================================================================================

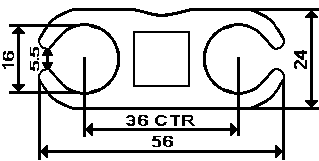

No2Alum Line Drawing.jpg

  Double Barrel Heavy Duty Aluminium

  Part No: 10215730 (No2Alum)

  Length: 6m

  Width (B): 56.61mm

    Height (H): 24mm

  Int Dia (D): 16mm

                                                  Suitable for 11mm - 14mm Keder



Joining element, 12mm square bar - Part No: 10121230

========================================================================================================

                                  Double Barrel Single Flange

                                    Part No: 1005543010055430 Single Flange 1.jpg

New Picture.jpg

     Width (B): 54mm

               Length (L): 6m

      Int Dia (D): 9mm

Suitable for 7.5mm - 8.5mm Keder

=========================================================================================================


13mm x 15mm - 52126.JPG

2 Channel Rail, Anodised

  Part No: 36153031

  Width (B): 30mm

  Height (H): 15mm

  Length (L): 3m

  Int Dia (D): 12mm

Suitable for 7.5mm - 9.5mm Keder

Special order, Minimum order quantity is 50 lengths

=========================================================================================================

5.5mm 10042530 FM.jpg

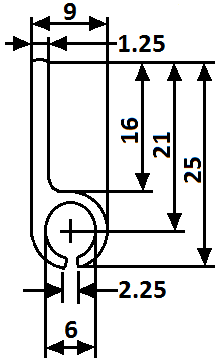

  5.5mm Keder RailFM 5mm h Track 10042530.jpg, Aluminium

  Part No: 10042530

  Width (B): 25mm

  Height (H): 9mm

  Length (L): 6m

   Int Dia (D): 6mm

                                      Suitable for 5.5mm Keder

========================================================================================================

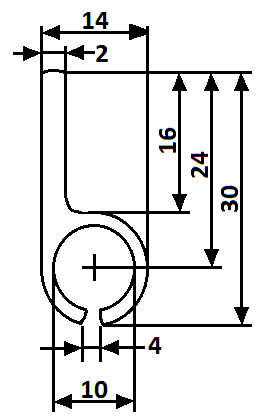

1004030 FM Small h Track.jpg  FM Small h Aluminium Keder RaFM Small h 10043030.jpgil

  Part No: 10043030

  Width (B): 30mm

  Height (H): 14mm

  Length (L): 6m

  Int Dia (D): 10mm

                                      Suitable for 7.5mm - 9mm Keder

========================================================================================================

10045030 FM Big h Track.jpg     FM Big h Aluminium Keder RailFM Big h 10045030.jpg

   Part No: 10045030

   Width (B): 50mm

   Height (H): 21mm

   Length (L): 6m

   Int Dia (D): 15mm

                                     Suitable for 10mm - 13mm Keder



========================================================================================================

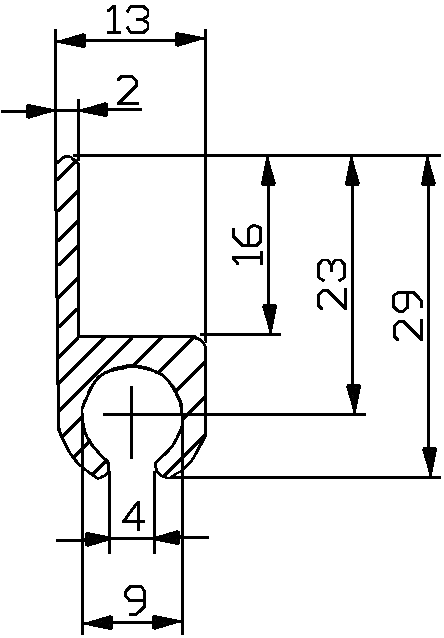

    Small h Aluminium Railsmall h track photo.jpgSmall h Line Drawing.jpg

   Part No: 10106630 (No3Alum)

   Length: 5m

   Width (B): 29mm

   Int Dia (D): 9mm

   Suitable for 6.5mm - 8.5mm Keder

========================================================================================================

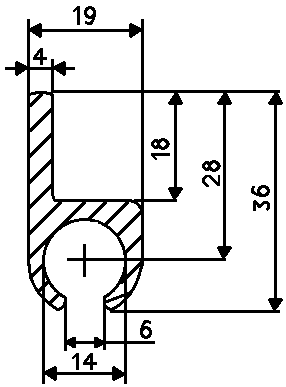

Big h Line Drawing.jpg    Big h Aluminium Railbig h track photo.jpg

    Part No: 10105730 (No4Alum)

   Length: 5m

   Width (B): 36mm

   Int Dia (D): 14mm

   Suitable for 11mm - 13mm Keder



========================================================================================================

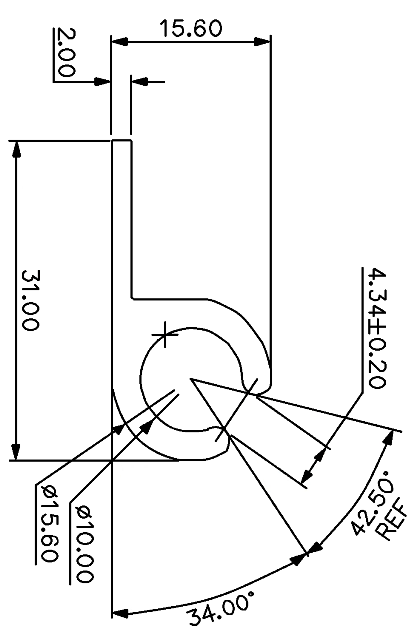

Caravanne Line Drawing 1.jpg

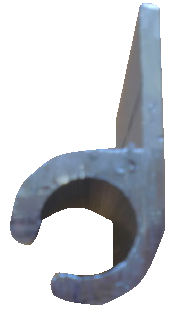

  Caravanne Rail, Caravanne Rail.jpg Aluminium              Anodised

  Part No: 1071883A

  Length (L): 5m

  Width (B): 31mm

  Int Dia (D): 10mm

  Suitable for 7.5mm - 9.5mm Keder

========================================================================================================

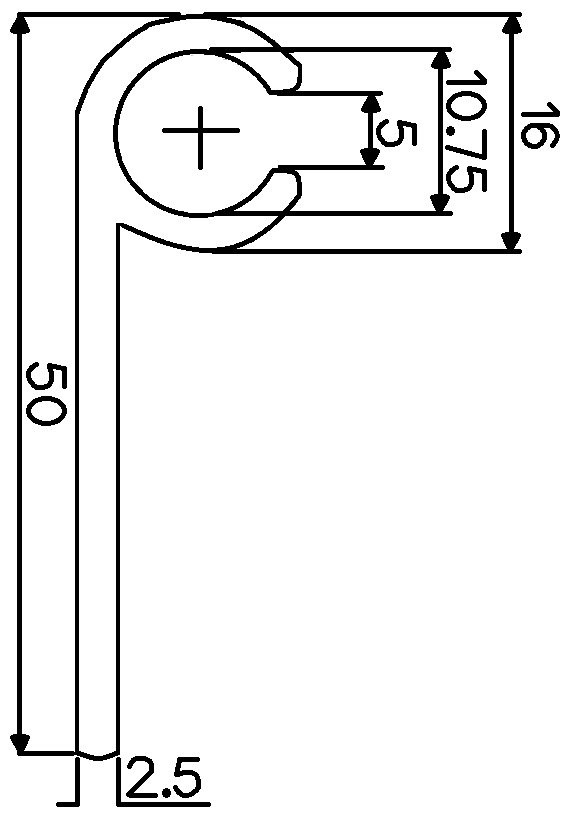

Small P Line Drawing.jpg   Small P Aluminium P Keder Railp track photo.jpg

  Part No: 10501130 (No3AAlum)

  Length: 5m

  Width (B): 50mm

  Int Dia (D): 10.5mm

  Suitable for 7.5mm - 9.5mm





========================================================================================================

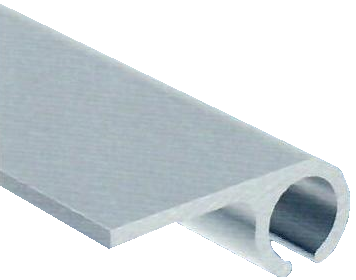

FM small p track 10043130.jpg  FM Small P AluminiuFM 10043130.jpgm Keder Rail

  Part No: 10043130

  Width (B): 30mm

  Height (H): 14mm

  Length (L): 6m

  Int Dia (D): 10mm

  Suitable for 7.5mm - 9mm Keder
========================================================================================================

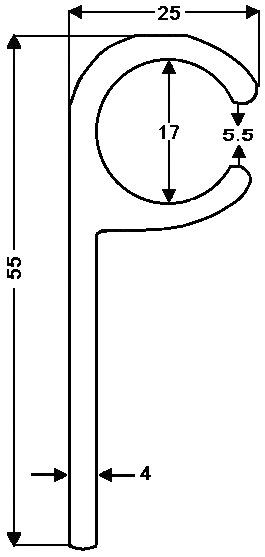

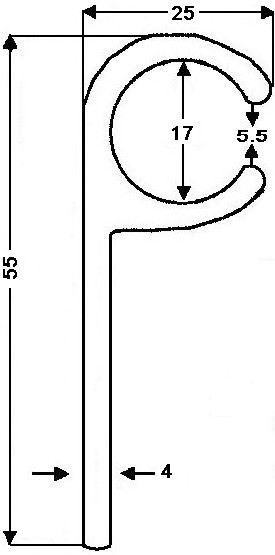

Big P Line Drawing.jpg

  Big P Aluminium Rail

  Part No: 10551730

  Length: 6m

  Width (B): 55mm

  Height (H): 25mm

  Int Dia (D): 17mm

  Suitable for 10mm - 15mm Keder

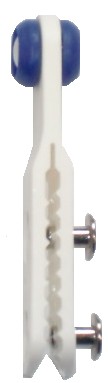

  This rail will also accomodate our small PVC roller

  with stainless steel axelkroko roller side profile.JPG







Part No: 35802641


========================================================================================================

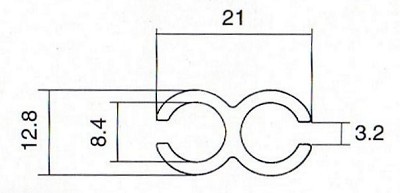

No5 PVC Line Drawing.jpg  PVC Shotgun Awning Rail

  Part No: 10604042 (No5PVC) White

  Part No: 10604043 Black

  Length: 3m

  Width (B): 21mm

                                          Int Dia (D): 8mm

                                          Suitable for 7.5mm Keder

=======================================================================================================

Alu Walking Stick 1.bmp.jpg

ali walking stick.jpg

Aluminium Walking Stick

Part No: 10545030

Length: 5m

Flange Size: 10mm

Suitable for 7.5mm - 9.5mm Keder


=======================================================================================================

42671236869848pvcrail.jpg   PVC High Frequency Weldable Walking Stick

  Part No: 10545042

  Length: 2.5m

   Width (B): 50mm

   Int Dia (D): 8.5mm

                                         Suitable for 6.5mm - 9.5mm Keder

========================================================================================================

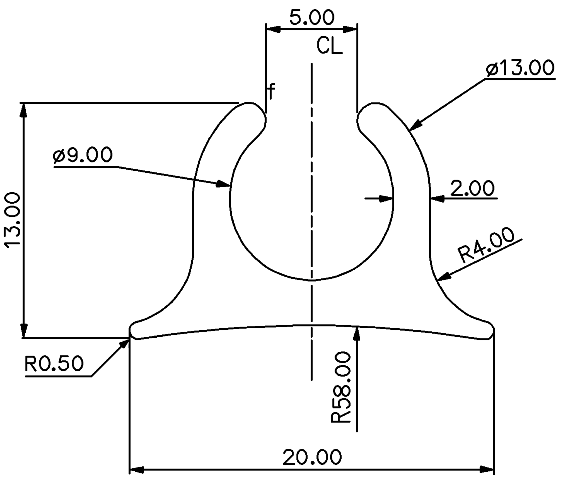

   C Type Aluminium RailC Track Line Drawing1.jpg

   Part No: 10685130

   Length:  5m

   Width (B): 20mm  (15mm in PVC)

   Height: 13mm (14mm in PVC)

     Int Dia (D): 9mm

                               Jaw Width: 4.5 - 5mm

                               Suitable for 5mm - 8.5mm

                               Also available in White PVC -  Part No: 10657542

========================================================================================================

Tadpole Line Drawing.jpg   PVC Tadpole Rail, White

  Part No: 10401442

  Length: 3m

  Width (B): 40mm

                                               Height (H): 14mm

                                               Int Dia (D): 9mm

                                               Suitable for 7.5mm - 8.5mm Keder

                                               Suitable for HF Welding or Sewing

========================================================================================================

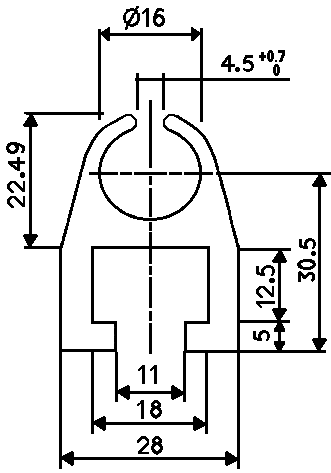

Bolt On Rail Line Drawing.jpg

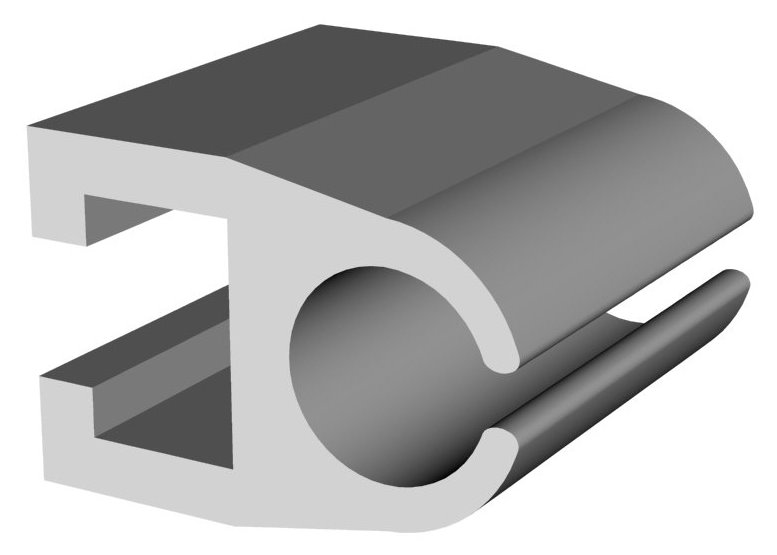

  Aluminium Bolt On Ra50301248959398single13mmBOLTONPHOTO.jpgil

  Part No: 10142130

  Length: 6m

  Width (B): 28mm

  Height (H): 40mm

  Int Dia (D): 16mm

  Suitable for 10mm - 13mm Keder

========================================================================================================

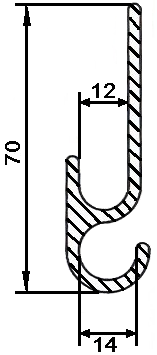

BE J Profile.jpg

BE J Type.jpg



  J Profile, Type BE

  Part No: 31033330

   3.3m Long

     Suitable for 11mm or 13mm Keder



========================================================================================================

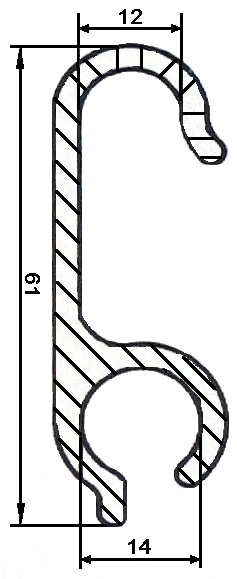

AE Y Type.jpg

AE Y Rail.jpg



  Y Profile,Type AE

  Part No: 31014030

  4m Long

  Suitable for 11mm or 13mm Keder


========================================================================================================

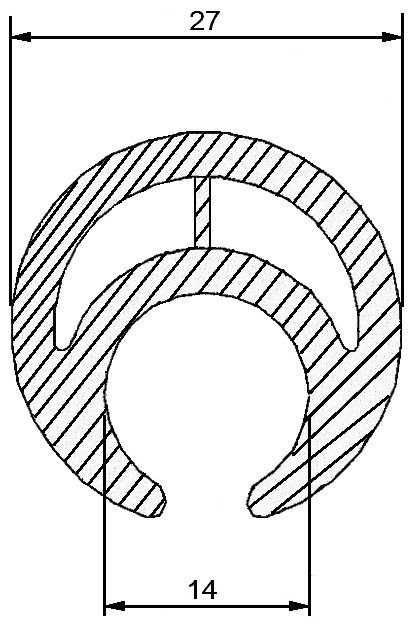

27mm Alu Pole.jpg

27mm seg left.jpg  27mm Aluminium Pole

 Part No: 31123330

3.3m Long

 Suitable for 11mm or 13mm Keder



========================================================================================================

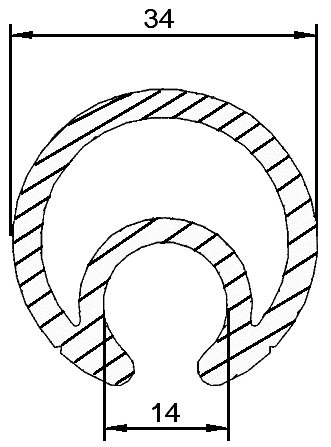

34mm Alu Pole.jpg

34mm pole left.jpg

 34mm Aluminium Pole

 Part No: 31023330HM

  3.3m Long

 Suitable for 11mm or 13mm Keder

 Also available on 4m Lengths

    Part No: 31024030HM


===================================================================================================

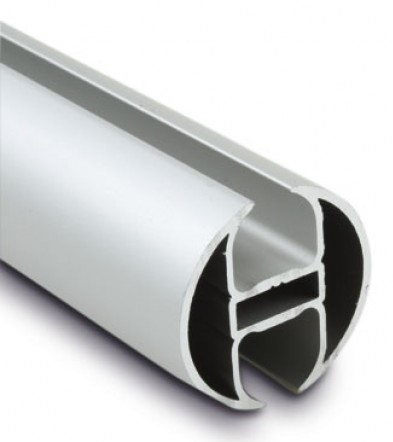

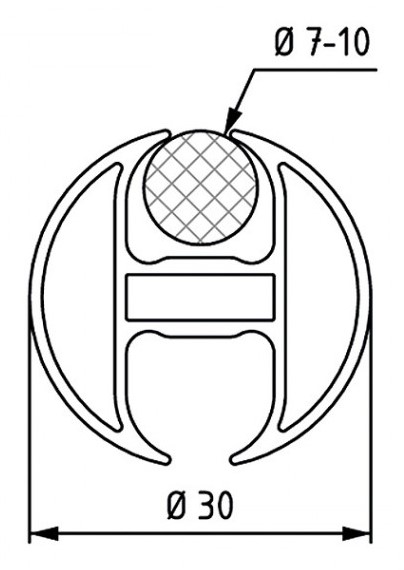

2 way pole 30mm 50017.jpg2 way pole 50017.jpg

30mm 2 Way Aluminium Pole

  Part No:36023031

  6m Long

  Anodised

   Suitable for 7.5mm - 10mm Keder

===================================================================================================

4 way pole.jpg

4 Way Pole 50mm.jpg

  50mm 4 Way Aluminium Pole

  Part No: 36085031

Centre bore: 24mm

6m Long

  Anodised

  Suitable for 7.5mm - 10mm Keder


===================================================================================================



Barkers Box Section.jpg

For more information on these box sections Please visit www.barkersmarquees.com or Click on the following link: BarkersMarqueesBoxSection which will take you straight to the right place.


""
